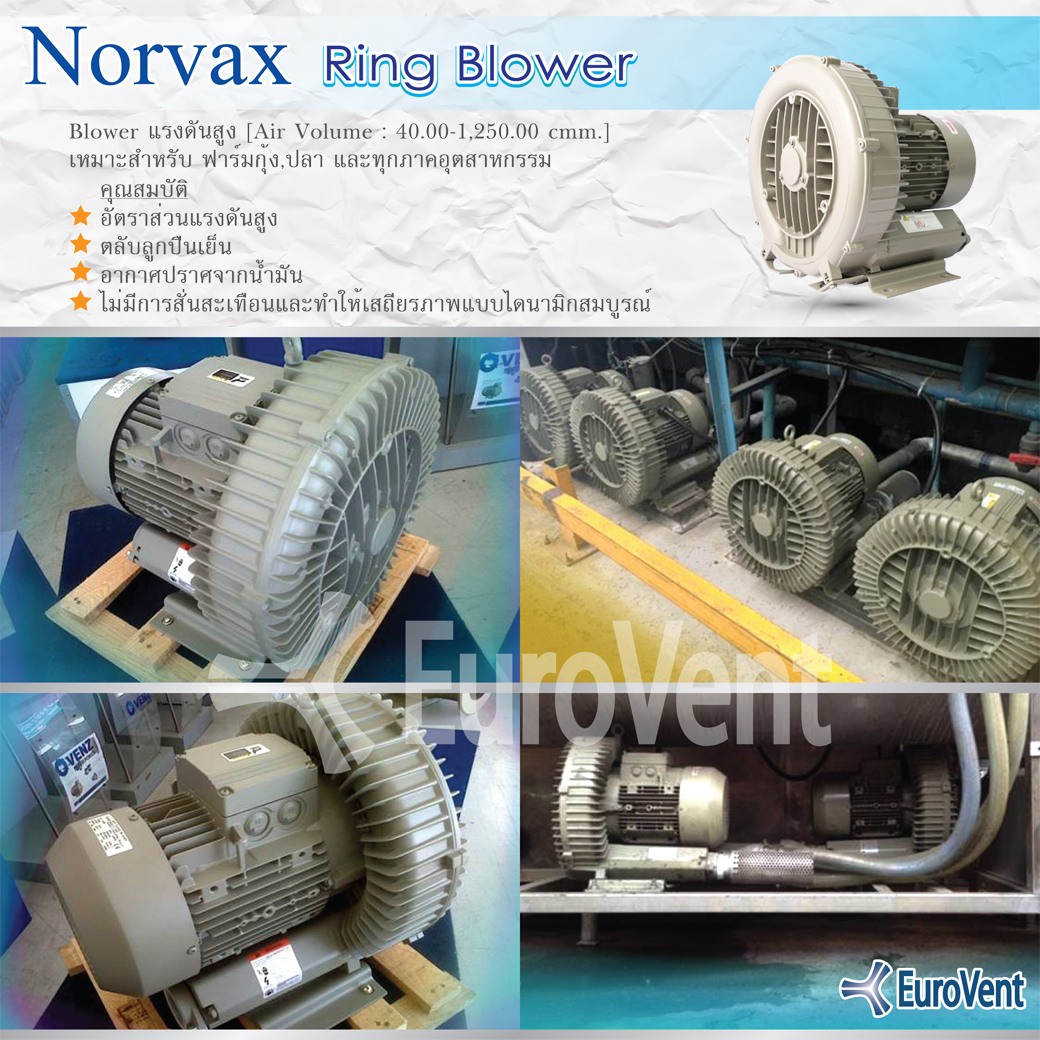

NORVAX Ring Blower NVT

Product:
Blower
Ring Blower
Constructions:



Ring Blower - NVS series



Norvax Roots blower is the first professional manufacturer for 3-lobe roots blower in Taiwan.

Drive : Direct Drive.
Motor : 0.2-11 kw. (2 pole)
Stage : Single Stage or Double Stage
Phase : 1 or 3 phase.
Air volume : 40-900 m3/h.
Vacuum : -60 to -280 mbar.
Pressure : 70-370 mbar.

Norvax blowers pffer a unique design resulting in a blower with one moving part - which means more-up time and lower maintenance. Long-life shielded bearings are mounted on both sides of the impeller and outside of the pumping chamber, providing
  • Highter pressure ratios
  • Cooler running bearings
  • Longer maintenance 100%
  • Oil-free air
  • No vibration and therefore complete dynamic stability
NVT series
Item Group Model Stage Motor
(kw.)
Phase Air volume
(m3/h)
Suction
Vacuum
(mbar)
Suction
Pressure
(mbar)
1. Ring Blower NVT-020 Single 0.2 1 40 -60 70
2. Ring Blower NVT-040 Single 0.4 1 80 -120 130
3. Ring Blower NVT-085 Single 0.85 1 145 -160 160
4. Ring Blower NVT-150 Single 1.6 1 210 -200 190
5. Ring Blower NVS-220 Single 2.2 1 318 -210 200
6. Ring Blower NVT-400 Single 4 1 318 -290 330
7. Ring Blower NVT-550 Single 5.5 1 530 -300 300
8. Ring Blower NVT-750 Single 7.5 1 530 -320 430
9. Ring Blower NVT-850 Single 8.5 1 1050 -210 210
10. Ring Blower NVT-1250 Single 12.5 1 1050 -280 270
11. Ring Blower NVT-1850 Single 18.5 1 1050 -340 460
12. Ring Blower NVT-22075 Double 0.7 3 88 -210 240
13. Ring Blower NVT-42160 Double 1.6 3 150 -280 280
14. Ring Blower NVT-42220 Double 2.2 3 150 -330 440
15. Ring Blower NVT-52300 Double 3 3 230 -340 410
16. Ring Blower NVT-52400 Double 4 3 230 -390 490
17. Ring Blower NVT-72430 Double 4.3 3 320 -360 380
18. Ring Blower NVT-72550 Double 5.5 3 320 -440 500
19. Ring Blower NVT-72750 Double 7.5 3 320 -440 570
20. Ring Blower NVT-74550 Double 5.5 3 500 -240 260
21. Ring Blower NVT-74750 Double 7.5 3 500 -240 310
22. Ring Blower NVT-82750 Double 7.5 3 520 -400 400
23. Ring Blower NVT-821100 Double 11 3 520 -430 600
24. Ring Blower NVT-821500 Double 15 3 520 -460 670
25. Ring Blower NVT-84750 Double 7.5 3 900 -200 180
26. Ring Blower NVT-841100 Double 11 3 900 -280 370


Usage:
  • Metal plating plant to add oxygen to accelerate chemical reactions.
  • Silkscreen machinery manufacturing factory, printing ink.
  • Chemical mixing plant to water Instead of using a stirrer "STIROR".
  • Packaging factory Used to repel moisture and drip in various production processes.
  • Aquatic animal farms fill the air with ponds, shrimp ponds, fish ponds instead of engine air compressors.
  • Plastic injection plant assembled with VACUMM tank to do DEHYDRATION or to suck plastic or dust.
