- Drive : Belt Drive.
- Motor : 0.55 kw. (4 pole)
- Impeller size : 36 inc.
- Air volumeh : 22,300 m3/h
- Phase : 1 or 3 phase.
- Fan Housing : Steel.
- Impeller : Stainless Steel.
- Impeller : Six-Bladed impeller ensure high air volume.
- Net guard : Standard protection net.
- Screw Fixing : It is possible to tension periodically the V-belt by fixing screw.
- Pulley : Aluminium pulley with bearing inside connect directly to fan hub.
- Motor : 1 or 3 phase motor in aluminium housing, All motor are in IP55 and INS Class F with low power consumption.
- Wire : VCT 2 core - Long 3 m., 2-pole plug.
- Up-down angle can be adjusted up to 20 degrees.
- Leg structure made of good quality steel - durable - strong.
- ***W Series : With castors 4 wheels - easy to move - light weight
- Brand : Eurovent
> Classified as the highest standard industrial fan in Thailand, because the EuroVent motor uses a running condenser motor system to make the motor Consume less power Help save energy And long service life.
> Continuous research and development makes the farm fan ventilate Eurovent with a high volume of air but quiet.

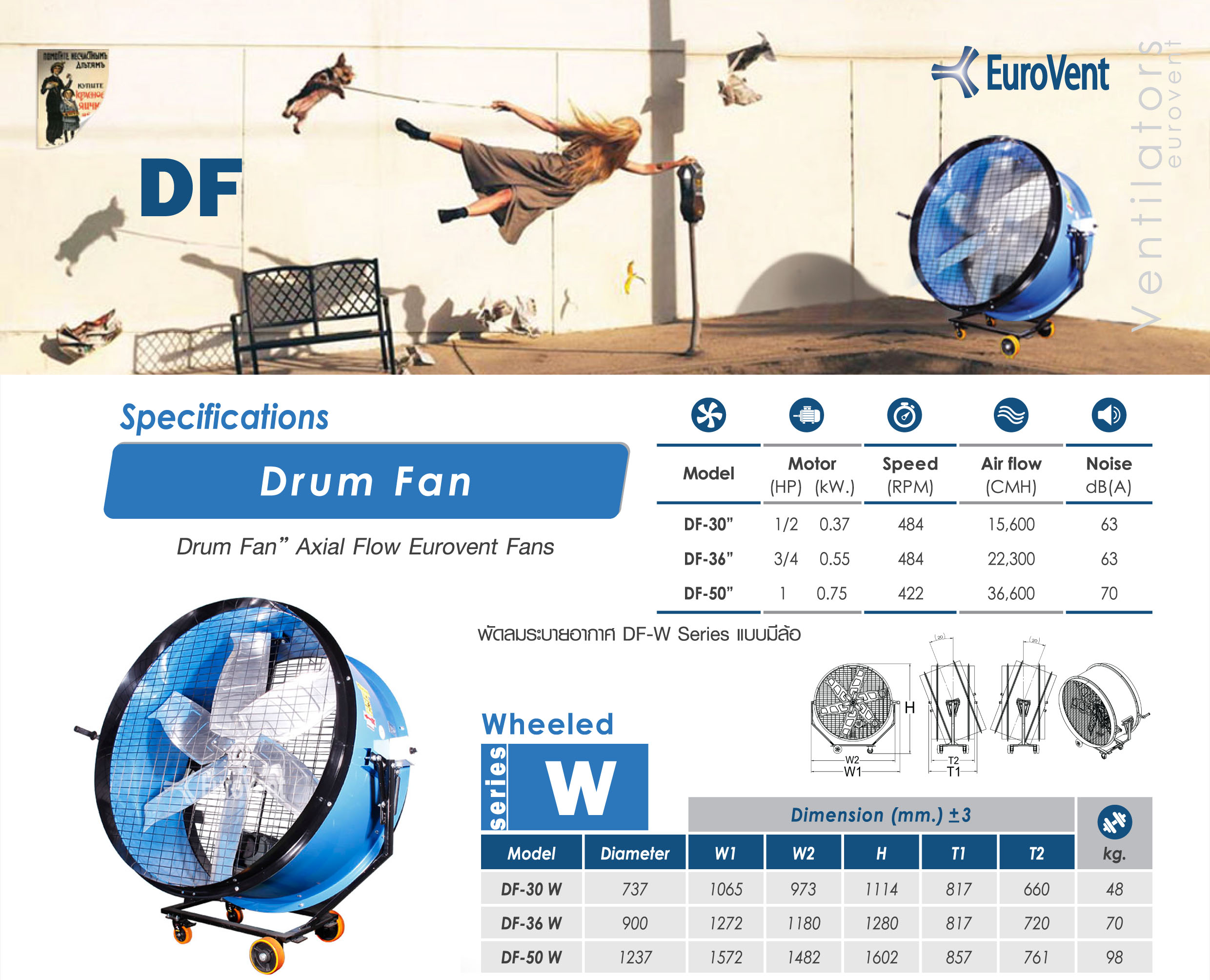

|Group||Model||Fan Housing||Impeller||kw.||Phase||Air Volumeh
|1.||Ventilation Industrial fan||DF-36 W1S||Steel||Stainless Steel||0.55||1||22,300|
|2.||Ventilation Industrial fan||DF-36 W3S||Steel||Stainless Steel||0.55||3||22,300|
- Used to set the floor Can be moved or hung for ventilation In that area.
- Suitable for - warehouse,
- General industrial factory,
- Restaurant, hotel, resort,
- Stadium, gym, school, cafeteria
- And places that are open or need ventilation.
***Not suitable for the area Food production plants, chemicals and places with high humidity.
