SUN FAN SERIES

Product:
Fan
Centrifugal Fan
Constructions:
Specifications
  • Base for installation control cabinet easy to install.
  • Entrance grill protects debris into the fan.
  • Curved entrance cone optimizes wind friction.
  • Wheel Lock
  • Spray painted Epoxy rust
  • IP55 standard
  • Reinforced steel reinforcement beams
  • Can be produced as required 10 hp - 60 hp
  • Prevent the grain from turning yellow.
  • Ventilation inside the pile of paddy.
  • Reduce heat from the breathing of the grain.
  • Reduce the growth of various microorganisms. Caused by moisture
Usage:
Used in the paddy industry.

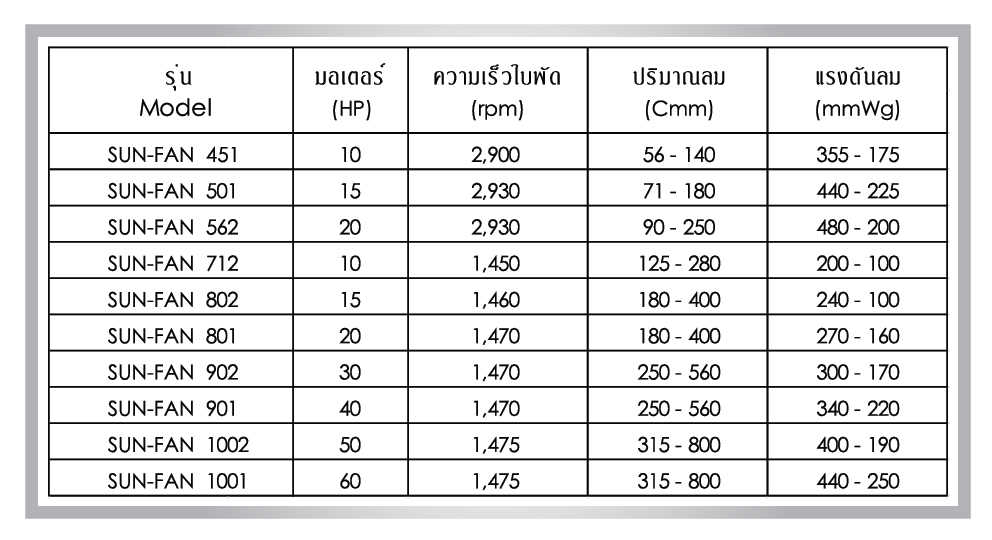

Item Model Motor
(HP)
Power
(kw.)
Pole Fan Speed
(rpm.)
Air Volume
(cmm.)
Pressure
(mmWg.)
1   Blower Sun Fan 712 10 7.5 4 1,450 125-280 200-100
2   Blower Sun Fan 802 15 11 4 1,460 180-400 240-100
3   Blower Sun Fan 801 20 15 4 1,470 180-400 270-160
4   Blower Sun Fan 902 30 22 4 1,470 250-560 300-170
5   Blower Sun Fan 901 40 30 4 1,470 250-560 340-220
6   Blower Sun Fan 1002 50 37 4 1,475 315-800 400-190
7   Blower Sun Fan 1001 60 45 4 1,475 315-800 440-250

Product Spec

Drive:
Direct
St. Pressure:
100.00-440.00 mmH2O
Impeller Dia:
700.00-1,000.00 mm.
Pressure:
Medium
Impeller:
Backward
Air Volume:
125.00-800.00 cmm.
